Tennis is a kind of high speed space movement, which requires high lighting.Professional design and equipment are required, and a good lighting system is designed to see a tennis ball in motion and its bounce off the ground.Avoid glare and create a good atmosphere.

There must be a strong contrast between the player, the ball and the background.Screens, draperies or nets are usually needed around the tennis court to block the ball in motion. It can also avoid the sharp contrast between the lines and surfaces formed by buildings and decoration, which helps to determine the direction of motion and estimate the distance easily.

The following articles will introduce you to professional tennis court lighting:

The one-stop service process

1.We will first get the site drawings you provided for analysis.

2.Design according to the requirements of your site and the relevant standards.

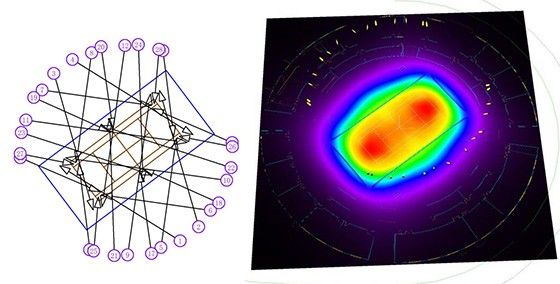

3.Engineers will conduct Dailux or AGI simulation with data.

4.Made installation instructions and provided on-site installation assistance when necessary.

5.If you have any problem, you can contact our customer service staff at any time, and we will solve the problem of customers as soon as possible.[email protected].

What is tennis court lighting?

Tennis court lighting is a light used to provide a good level of lighting and to distribute light throughout the tennis court.Tennis courts must have correct lighting design.This is to ensure that everyone has a chance to see clearly what is going on.No matter how fast or where, the ball should be clearly visible.Tennis court lighting will improve the fan experience and provide better security.

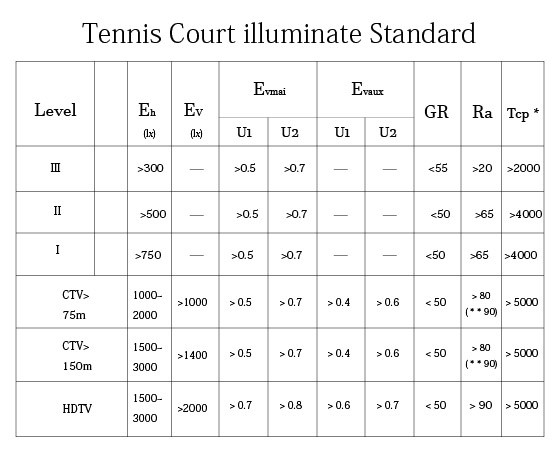

1.Domestic and international

For such events are required for 500 Lux .

2.Club competition and business

For commercial and club competitions, lighting should be around 350 Lux.

3.Residences and entertainment venues

It requires low-level playback, so 200 Lux is enough.

Pls check the blew link to see the product detail information:

CYCLOPS SERIES 240W-1800W

Advantages of LED tennis court lamps

When designing lighting solutions for tennis courts, attention must be paid to lighting requirements.These are some of the requirements that you need to be aware of.

1.The brightness

The first requirement for tennis court lighting is brightness.The pitch must be well lit to ensure that players and spectators have the correct view.There are many venues that use HID floodlights to illuminate the entire space.Higher power may be needed because of the lack of brightness.LED lights are a better choice because they provide higher brightness than HID lights.

2.Efficiency

Another requirement for tennis court lighting is efficiency. LED have a much higher energy efficiency than conventional lamps because they are more efficient.

To determine the efficiency of light, luminous efficiency is used.The unit used to measure the efficacy is LM/W, where LM stands for lumen. The higher the lumen, the brighter it is.

LED lamps have 120 to 150 lm/W, metal halides 75 to 100 lm/W, HPS 90 to 100 lm/W, and halogens 10 to 20 lm/W.This indicates that for 1 watt of power consumption, the LED lamp will emit 150 lm/W.As a result, LED lights will save more power than any other lighting solution.

3.Lifespan

One of the most important requirements you should pay attention to is the life of the lamp.If the lamp’s life is short, it will lead to frequent lamp replacement.This increases operating costs.Outdoor lighting is expensive to install.

LED have a long service life of up to 80,000 hours.Halogen lamps, on the other hand, last only 2,000 hours, whereas metal halides last 10,000 hours.So LED save overall cost.

Points to note when buying LED tennis court lights

Here are 9 key things to consider when buying the best LED lights for a tennis court

1.Waterproof rating

The first thing you need to focus on is the water resistance of the lamp.It is vital that the lamps are waterproof and at least IP66. This way, you can use the lights anywhere. LED do not contain gas discharges, brittle glass or filaments, so they are easily waterproof.

2.High photosynthetic efficiency

To reduce maintenance costs, you must choose durable and quality LED lights.In order to choose efficient LED lights, you must choose efficient lighting equipment.This will use fewer lights to achieve better results.

3.Color temperature selection

In order to purchase the right LED lamp, you must consider the color temperature of the lamp.Cold white with 4000 to 5700 K is recommended.Some tennis courts require a color temperature of 3000 to 3500 K warm light.

4.The anti glare

One of the most important functions of LED lights is anti-glare.Glare may cause irritation or discomfort.Green Light LED has anti-glare design to reduce harmful glare.

5.Cooling system

The operation of high-power LED lamps will generate high heat. If the heat is trapped inside, the life of the lamps may be shortened.So it’s important to have a strong cooling system.

6.Evenness

In order to illuminate a tennis court, uniformity is essential.This will affect the comfort level of the playing field.In general, a light evenness of 0.6 to 0.7 is sufficient.

7.Easy to install

Green Light LED are easy to install because you don’t need professional help or advanced equipment.We will provide detailed installation instructions to help

8.Easy maintenance

LED lights should be modular in design.You can repair any damaged parts without removing the entire lamp.We will provide detailed maintenance instructions to help you complete the work and save costs.

9.5 ~ 7 years warranty

Very little attention has been paid to the warranty of LED lights.This was a huge mistake. It is recommended to understand the warranty provided by the manufacturer before purchasing.Green Light provides a long term warranty for all tennis court lights.

The cost comparison between LED and HM

So far, you know that LED lights are energy efficient and cost effective.To understand the cost of LED lighting on a tennis court, you need to look at this example. For example, we use 24,000 LED lights to illuminate double tennis courts.You need 70,000 W of metal halides to light up the space.

LED are turned on for eight hours a day and cost $0.12 in energy.The monthly cost is $86.40.For metal halides, it costs $252 a month.

In addition, the cost of the lamp depends on the lux level and the height of the pole. For example, lighting a single venue for recreational purposes costs about $3,000. For commercial purposes, the cost would be close to $6,000.

Conclusion

LED lights are the best choice for tennis courts.It provides appropriate levels of brightness, uniformity, energy efficiency and durability.Green Light offers excellent LED lights.We have a range of LED lights for different budget types of tennis courts.If you would like more information, please contact our team with details.[email protected].
