Green light led cricket ground lighting manufacture center cricket field light supplier top cricket stadium light for ICC organization

A huge market for LED cricket ground lighting

Cricket, as wood ball, is a sport composed of “gentleman’s game,” composed of sportsmanship and fair play.Cricket is an exercise in hand-eye coordination, a combination of upper-body movement control, skill and strength.The event is a team event.

Now, more and more countries are committed to the development of cricket pitch, LED lighting will have a huge potential market.Green Light is committed to the one-stop service of high quality LED lights in stadiums, providing perfect solutions for each stadium.Now, we’ll cover some stadium light considerations and some of the project budget elements.14 Key Considerations for Cricket ground Lighting -2020 Buyer’s Guide and Reviews.

The one-stop service process

1.We will first get the site drawings you provided for analysis.

2.Design according to the requirements of your site and the relevant standards.

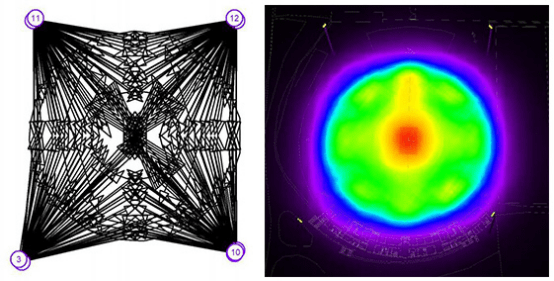

3.Engineers will conduct Dailux or AGI simulation with data.

4.Made installation instructions and provided on-site installation assistance when necessary.

5.If you have any problem, you can contact our customer service staff at any time, and we will solve the problem of customers as soon as possible.[email protected].

Pls check the blew link to see the product detail information:

GATLING SERIES 800W-1200W LED ARENA LIGHTS

Further Precautions for cricket Ground Lighting (continued)

1.Match cricket ground lighting

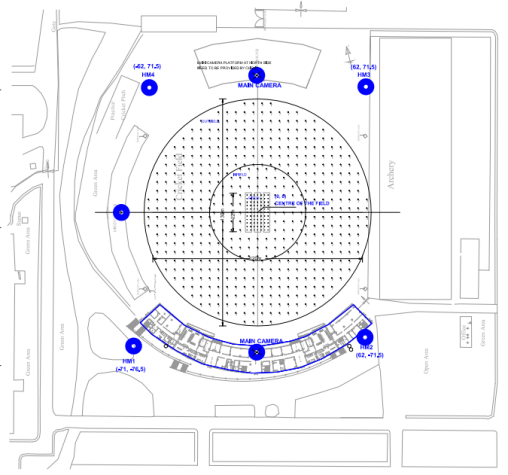

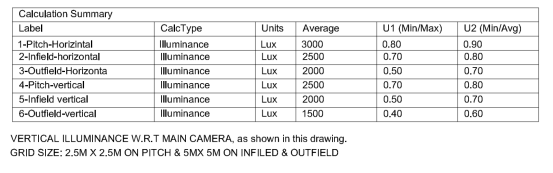

The calculation and measurement of cricket ground lighting installations shall be carried out within the specified grid.AS 2560.1, European standard

Methods for selecting appropriate measuring grids are considered in EN12193 and IESANZ LG 4.01.

For calculation purposes, the grid is 5m x 5m, and the square is 2m x 2m grid.

2.Lighting design of cricket ground

In order to ensure the quality of cricket ground lighting installation and to ensure that local venue and conditions of use are taken into account, lighting design and installation specifications should be developed in conjunction with sporting lighting design specialists.The team of green Light professional engineers will provide the best solutions for your cricket field.

3.Supply of cricket ground searchlights

Supply costs shall include floodlights, lamps, field deliveries and appropriate warranties.

4.Installation of cricket ground searchlight

Installation costs should include manual delivery, operational checks, checking that the beam distribution is properly set up, and installing the cricket ground lighting on the pole or, more commonly, on the crossarm of the pole.

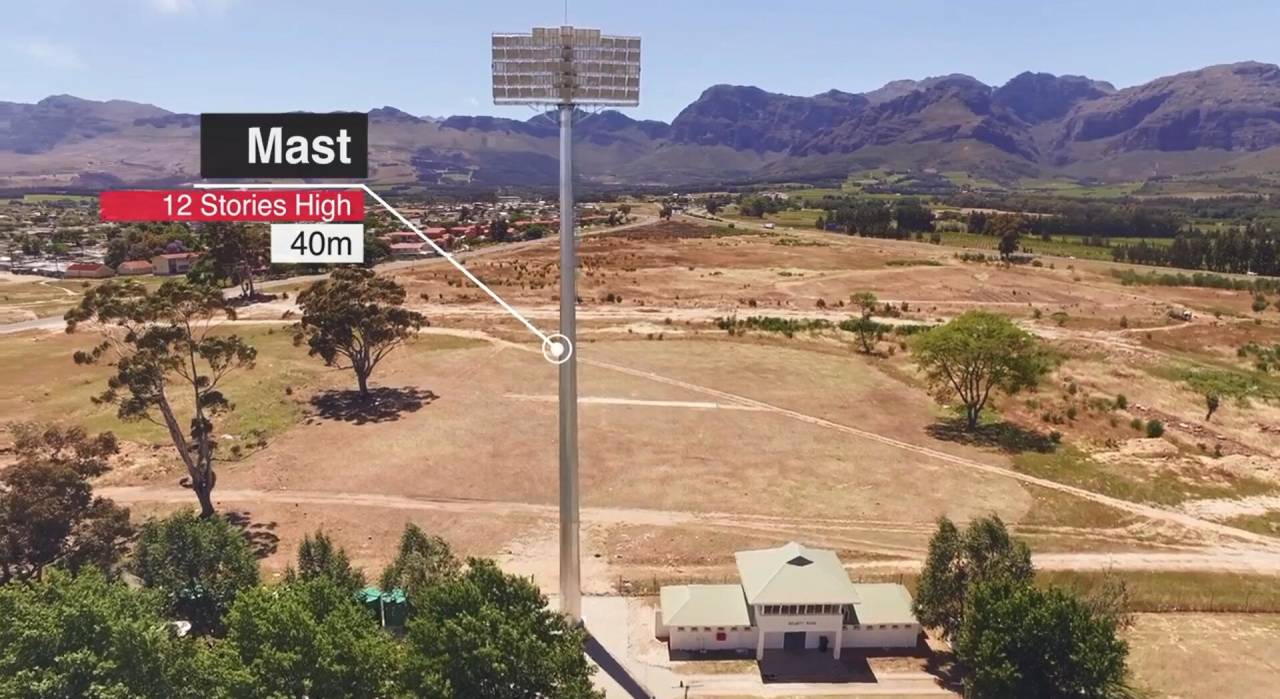

5.Pole supply

Cricket ground lighting pole supply involves the provision of suitable cricket ground lighting poles with the correct height and load to carry the recommended number of cricket ground lighting.Pole supply shall include supply and freight to the site and unloading at suitable locations close to site installation points.Inspect requirements for foundation cage and anchor bolt assemblies that are cast into the foundation.According to the foundation design, these will be provided by the rod supplier or consist of civil works on the rod foundation.

6.Vertical rod installation

Installation fee shall include the cost of installation of light poles on site.Note that rigid steel rods are usually delivered in batches as required by the manufacturer.Please obtain recommended installation instructions or personal use facilities for any rods with a lowered top shelf and ensure that all proper installation measures are included.

Pls check the blew link to see the more detail information about baseball field light:

The best guide to choose baseball field lights

7.Cricket ground

A concrete strut foundation is usually required and properly designed by a professional structural engineer.The type of foundation will be determined according to the field conditions disclosed in the geotechnical engineering report.Common types include concrete bored piers and raft foundations.This element shall also permit the certification of structural designs and the provision of building permits.

8.Lifting/climbing

Vertical rod installation, cricket ground lighting aiming and follow-up maintenance usually involve working at altitude machinery.Equipment such as cranes involve taking in and out during initial installation and subsequent maintenance.

Due to the heavy weight of the vehicle, it is important to plan the location and avoid entry above the playing field to prevent oval damage, especially during wet weather.

Pls check the blew link to see the product detail information:

CYCLOPS SERIES 240W-1800W

Green Light provides a one-stop solution for cricket ground lighting, cables, distribution cabinets and masts.If you would like more information on cricket ground lighting, please feel free to contact Green Light by email [email protected]. We look forward to hearing from you.

9.Power supply for LED cricket ground lighting

Stadium lights use a lot of power, usually much more than clubhouses or changing rooms.Therefore, plan for the expected installed load and apply any required power upgrades as early as possible, as this may take some time to implement.

For example, a class III space on an ellipse equivalent to a full-size AFL ellipse may typically require 52 floodlights x 2Kw = 104 Kw, which is a large load.Class II and Class I will be higher.

The power supply may need to have an substation dedicated to the site or installed in the street adjacent to the site.The project also includes liaison with the distribution business to obtain on-site power connections.

Green light LED are used less on cricket ground and produce more.

10.LED cricket ground lighting switchboard

The electrical installation design will need to be ready for the switchboards needed to provide the new floodlights.Typically, this will be done through a switchboard dedicated to the LED cricket ground lighting installation and may contain lighting controls that are not at each LED cricket ground lighting pole in the field.

Pls check the blew link to see the more detail information about football field light:

The top football field lighting tip

11.Lighting switch control of cricket ground

Controls and individual groups of users that will allow access to LED cricket ground lighting installations should be considered.It can be controlled by a simple manual button switch control or by a keyboard/touch screen type networked lighting control.In addition, remote access may be required now or in the future to turn on and off the LED cricket ground lighting and to monitor or turn off the status of the LED cricket ground lighting.

12.Wiring

Cable wiring is required between the supply point to the LED cricket ground lighting switchboard and each moving floodlit lamppost.

The cable arrangement will be designed to accommodate the required switching flexibility.Therefore, it is important to specify or agree on the level of switch flexibility required by the designer and whether certain switches are required to work in certain modes.

13.Anti-thunder

Designed in accordance with the requirements of AS 1768 to ensure the safe transmission of lightning to the ground.

Cricket ground lighting question

1.What are the types of cricket ground?

Class I – audience of more than 5000 facilities

Class II – attendance of less than 5000 facilities

Class III – have ability to the audience of the facilities

Class IV – ability no spectators

2.What are the lux level and brightness requirements for cricket ground lighting?

For most practice fields and non-TV cricket grounds, we need about 250 to 350 lux, which is enough for players to compete lightly among team members.Professional competitions require between 500 and 750 lux. It’s brighter because the motion is more intense.High – intensity lighting can stimulate cricketers’ energy and improve their performance.The highest standards required for cricket stadiums hosting international broadcast matches are about 1,500-2,500 Lux. Because it provides a clearer environment for taking photos and videos.

3.What is lighting overview?

Horizontal illumination – Measurement of lumens per unit area on a horizontal surface.Usually, it is measured three feet above the playing field.

Uniformity illumination-A measure of the rate of illuminance change, expressed as the ratio between the levels of illuminance at adjacent measurement points on a uniform grid.The limit of uniformity varies with the velocity of the ball.

LUX – A measure of illumination that weighs the spectral sensitivity of the human eye.Defined as 1 lux = 1 lumens per square meter.

FC – Foot candle.Official definition: 1 foot candlelight = 10.764 lux;However, the simplest method is about 1 foot candlelight = 10 lux.

4.What were the main considerations in the cricket ground?

1.High school, college and different places of entertainment lighting standard.

2.Cricket pavilion lighting considerations include: the appropriate direction and location, intensity of illumination and control, can meet the demand of any type of emergency.

3.Number based on the width of the line.

4.Cut-off or overflow control the quality of the light.

Pls check the blew link to see the more detail information about rugby field light:

Advanced rugby field lighting system

Green Light provides a one-stop solution for LED cricket ground lighting, cables, distribution cabinets and masts.If you would like more information on cricket ground lighting, please feel free to contact Green Light by email [email protected]. We look forward to hearing from you.

14.Have the ability to allocate large venues

We are the lighting supplier of THE ICC Federation. We have served a number of standard tournaments. The quality of our products has been recognized and the services we provide can meet the demand.Not only that, but we are also partners in FIFA, EUFA, MBL and other leagues, specially designed for large venues.Provide you with the best energy saving solutions.
