The FIFA union football field lighting standards with the UEFA football stadium lights upgrade football pitch lights manufacture

Football field lighting design is a functional, technical and difficult design.To meet the needs of football field lighting, is conducive to the far mobilization to play the ideal state, is conducive to the correct decision of the referee, is conducive to the viewing effect of all sides in the audience.There are many factors to consider.Green Light provides a variety of football field lighting according to the standard to meet your football field lighting needs.Here are some lighting rules for football fields.

Football field lighting standard

The the football field lighting is strictly divided into three categories, helping different needs of the field as a construction standard.

1.Level 3

The LED football field lighting guide includes 75 Lux horizontal lights for outdoor recreation and training.When it comes to leisure football and high school football, the range is usually between 75 and 200 lux. That’s enough illumination to see the speed of a soccer ball at night.

2.Level 2

Category II relates to lighting guidelines for leagues and clubs.Standard is 200 lux-500 lux horizontal football field lighting with a uniformity of 0.6.This is specially designed for semi-professional stadiums.General training and non-professional games can be performed under this light, and many high school venues follow this football field lighting standard.

3.Level 1

The first category includes stadiums for all professional purposes.These stadiums will also be used for televised events and must be professionally lit.This ground is used for national and international competitions, so the football field lighting installed must be of high performance and excellent quality.For this purpose, the ground is 1200 ~ 2000 Lux, the uniformity is about 0.7 in U1 and 0.8 in U2. This type of venue requires a very high standard of football field lighting because there are a large number of spectators watching the game and it needs to be televised.So the requirements for glare control are also extremely strict.

Pls check the blew link to see the product detail information:

GATLING SERIES 800W-1200W LED ARENA LIGHTS

Lighting solutions for football fields with different cloth poles

Proper football field lighting is also important, especially in professional competitions. Football field lighting should follow basic guidelines so that lighting throughout the stadium is accurate.Green Light provides standard football field lighting for all purposes of field lighting to help you achieve your lighting goals.

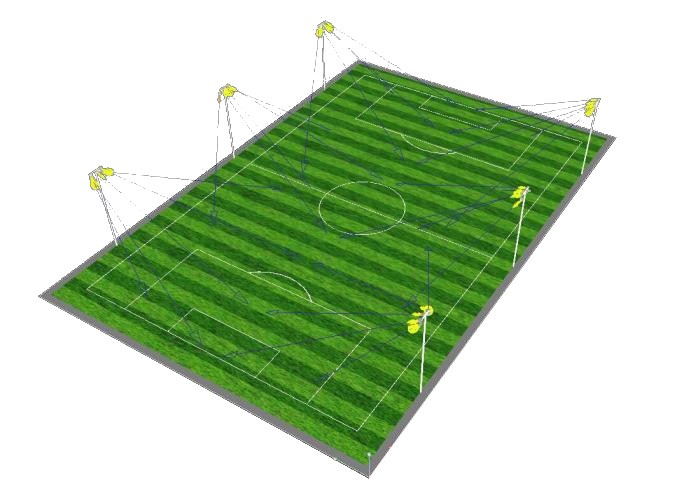

1.Lighting in four corners

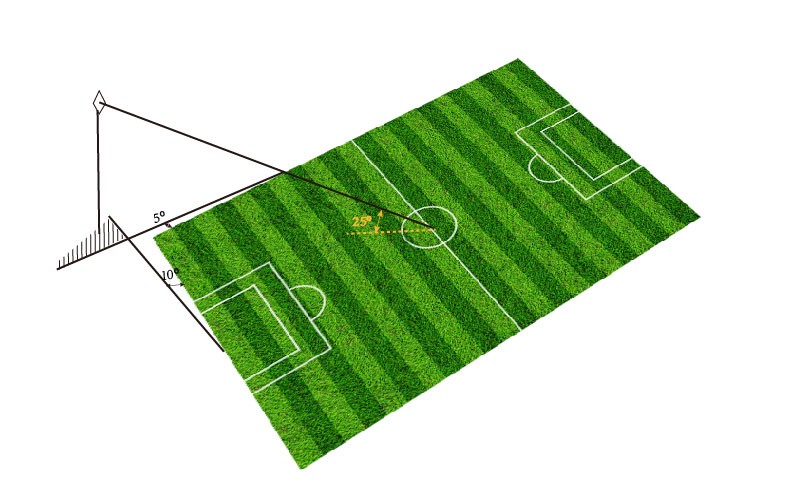

The football field lighting at the four corners means that the light poles are located at the four corners around the stadium, so the football field light beam is obscured from the corners to the centre of the ground.For this purpose, the pole must be as high as possible so that the football field light can easily travel to the center while controlling glare and light uniformity.In order to make the football field lighting even, the installation height in class I stadium should be at least 30 meters above the ground.The professional design will tell you that the Angle between the light pole height and the center of the field is 25°, which is the best way to avoid the waste of cost.Moreover, it avoids the glare problem caused by too low lamp post, which makes the football field always in an uncomfortable feeling when turning on the light.

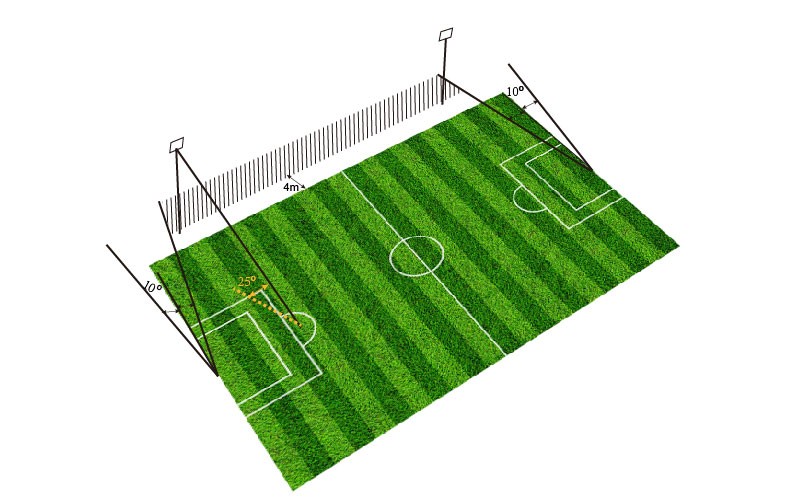

2.Lighting on both sides

In this category, four lighting poles are placed in the center of the two sides.This allows the beam to cover the entire ground evenly.It’s important to consider this, so you also need to set it as high as possible.The height should also follow an Angle of 25° with the center line of the course.However, it is necessary to avoid the area with an Angle of 10° with the gantry.Because that area of the football field lights will directly affect the goalkeeper’s line of sight.

3.Six to eight strokes on both sides

When more poles are involved, they need not be too high.Uniformity will also vary with normal height.Usually used as a training ground in high schools and communities.In this way, the site will not set the illumination standard too high, so the power of the lamps will be reduced accordingly.Achieving softer uniformity is a more important goal for this type of site.

Green Light football field light advantage

1.High luminous efficiency

Under the same conditions, the higher the light efficiency, the more energy saving.Green Light’s LED stadium lights use high quality LED chips with a maximum Light efficiency of 150 lm/W to maximize energy savings.20-30 lm/W compared to conventional halogen lamps.The energy saving efficiency increases geometrically, which seems to make up the cost consumption when buying LED football field.

2.Unique optical design

Different stadiums have different needs, to meet these needs, we need football field lighting with a variety of power options, and the beam Angle also needs to be diversified.Green light Football field light use secondary optical design for professional design of football field light distribution.The overall projection Angle is designed according to the different installation methods of different sites.Ensure that the lighting from each football field light is properly used on the site.It inhibits glare from the source and thus distinguishes the unprofessional sports football field light on the market.It helps customers to distinguish how to choose to buy.Reduced the loss caused by unprofessional operation.

Pls check the blew link to see the more detail information about rugby field light:

Advanced rugby field lighting system

3.High quality lighting without flickering

It is well known that the flicker and color rendering index of lighting are two important quality aspects that affect the effect of TV broadcast.Green Light’s LED stadium lights use high-quality constant-current and constant-voltage drivers, which will not generate any stroboscopic effect. Therefore, they can be viewed clearly without flickering in the HD broadcasting environment.Without adding any glare or distorting the ULTRAVIOLET or infrared spectrum;All of these provide the best color look and contrast, and can even be operated as quickly as possible on the playing field.The most important thing is to be able to maintain normal HD images while shooting at a slow speed.

4.Easy installation

Precise scales are printed by laser on the side and bottom of the handle to facilitate the installation.Improved efficiency and cost savings, no need to rely on instruments to measure the need to adjust the position.This is the detail we made for professional work.

5.Long life expectancy

The use of industry-leading superconducting radiators to help ensure LED life and improve stability, slow down the speed of light decay of high-power football field light.The anti-corrosion treatment ensures sustainable and durable functionality, ensuring long term use under harsh conditions.Green Light Football LED field lights have a lifespan of 100,000 hours.

Pls check the blew link to see the more detail information about Cricket ground light:

Cricket stadium lighting best choice for biding

6.Reasonable weight

The complex thermal management design, combined with the most advanced technology, enables the lighting equipment to be compact in size and lightweight, which helps to reduce labor costs without compromising heat dissipation.It also saves the cost of making light poles.It also increases security.

7.Sunshade blocks upward overflow light

Overflow light is light that escapes from the surface of a football field light and enters the surrounding area, such as a residential area or parking lot.The sunshade is specially designed to trim away excess upward light, allowing good control of overflow light and limiting glare.Create a comfortable night environment.Just because there is a stadium with lights on at night does not affect the lives of other people who do not participate in sports.

Pls check the blew link to see the product detail information:

CYCLOPS SERIES 240W-1800W

8.IK 08 level

The toughened glass panels are designed to protect the light from high-speed objects such as birds or balls.Not only does it reflect the crash-proof level, but it also indicates some disadvantages in the industry, such as the fact that luminous surface lenses will not produce yellowing lenses for 50 years.

9.Quality assurance service

Green Light provides a 5-10 year warranty for all LED football field lights.If you choose Green Light football field Light, you can always get quick support.We can get replacement parts to you within a week to minimize the damage caused by a lockout.

Pls check the blew link to see the more detail information about baseball field light:

The best guide to choose baseball field lights

Conclusion

When it comes to LED football field light, it’s important to follow certain standard guidelines.You can choose the type of football field light depending on what the football field is used for, whether it’s lighting a football field for a school or a national games.You can choose from three categories and decide accordingly.More professional football and games, need quality football field light, enjoy this service higher, please feel free to contact us by email.[email protected].
